Bonus: Reinforcement Learning#

Note: this lecture is the one I thought about ommitting from year 2024, thus implementation is left in Keras and it is listed as optional read.

Run following command to install deps:

pip install keras-rl2 gym

If you are interested dig deeper:

Read what deepmind is doing.
Read what openAI is doing.
Watch AlphaGO movie and read paper.
Work through Deep RL, which contains more examples and intuitive lower level implementations. This medium series is great.
Read book “Deep Reinforcement Learning Hands-On” by Maxim Laptan.

import gym
import numpy as np
import pandas as pd

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Activation, Flatten
from tensorflow.keras.optimizers import Adam

from scipy.stats import beta

from rl.agents.dqn import DQNAgent
from rl.policy import EpsGreedyQPolicy
from rl.memory import SequentialMemory

import matplotlib.pyplot as plt

Bandits#

First we need an experiment, for example let’s set up 3 arm bandit so that first hand gives highest reward.

BANDITS = [0.7, 0.2, 0.3]  # arm 1 wins with prob of 50%

def pull(i):
    return 1 if np.random.rand() < BANDITS[i] else 0

Now we can implement multi-armed bandit algorithm based on bayesian update

$$P(\theta | x)=\frac{P(x | \theta) P(\theta)}{P(x)}.$$

pulls = [0 for _ in range(len(BANDITS))]  # How much pulls were executed
wins =  [0 for _ in range(len(BANDITS))]  # Number of wins

n = 20    # Number of pulls to do

for _ in range(n):
    priors = [beta(1 + w, 1 + p - w) for p, w in zip(pulls, wins)]
    # Choose a 'best' bandit based on probabilities
    chosen_arm = np.argmax([p.rvs(1) for p in priors])
    # Pull and record to output
    reward = pull(chosen_arm)
    pulls[chosen_arm] += 1
    wins[chosen_arm] += reward

print('Total pulls', pulls)
print('Total wins ', wins)

Total pulls [17, 1, 2]
Total wins  [14, 0, 0]

df = pd.DataFrame(index=np.linspace(0, 1, 101))
for i, p in enumerate(priors):
    df[f'arm_{i}'] = p.pdf(df.index)

df.plot()
plt.show()

_images/a9e39bd14043589d8390982163567fd6d6a60f4a7f6f771ea79e3b6ce998291a.png

TASK: rerun with higher number of experiments. Do the distributions look better then?

Usually only to exploit the system is not a good idea and epsilon-greedy can help to balance out explore/exploit.

Idea of epsilon-greedy is simple:

if random_number < epsilon:
    # choose arm to pull randomly
else:
    # choose optimal arm based on pulls and wins

TASK: implement epsilon-greedy and run some experiments with different epsilon values. Try to reson when epsilon-greedy might be a better choice.

Q-Learning#

Q-learning is a model-free RL algorithm to learn quality of actions telling an agent what action to take under what circumstances. Idea is simple - we will store values in state/action table and use it as a reference for making actions.

Let’s start by looking at markov decision process based game:

This can be represented with transition weights as follows:

transition_probabilities = [ # shape=[s, a, s']
        [[0.7, 0.3, 0.0], [1.0, 0.0, 0.0], [0.8, 0.2, 0.0]],
        [[0.0, 1.0, 0.0], None, [0.0, 0.0, 1.0]],
        [None, [0.8, 0.1, 0.1], None]]
rewards = [ # shape=[s, a, s']
        [[+10, 0, 0], [0, 0, 0], [0, 0, 0]],
        [[0, 0, 0], [0, 0, 0], [0, 0, -50]],
        [[0, 0, 0], [+40, 0, 0], [0, 0, 0]]]
possible_actions = [[0, 1, 2], [0, 2], [1]]

Now we will try to run through iterative optimization process

$$Q_{k+1} (s,a) \leftarrow \sum_{s’} T(s,a,s’) [R(s,a,s’) + \gamma \max_{a’} Q_k(s’, a’)] ; \text{for all} ; (s’a).$$

Q_values = np.full((3, 3), -np.inf) # -np.inf for impossible actions
for state, actions in enumerate(possible_actions):
    Q_values[state, actions] = 0.0  # for all possible actions

gamma = 0.90 # the discount factor

for iteration in range(50):
    Q_prev = Q_values.copy()
    for s in range(3):
        for a in possible_actions[s]:
            Q_values[s, a] = np.sum([
                    transition_probabilities[s][a][sp]
                    * (rewards[s][a][sp] + gamma * np.max(Q_prev[sp]))
                for sp in range(3)])

Q_values

array([[18.91891892, 17.02702702, 13.62162162],
       [ 0.        ,        -inf, -4.87971488],
       [       -inf, 50.13365013,        -inf]])

The idea of using discounted rewards in Q-states is one of the fundamental ideas in RL. For sure we don’t know initial probabilities and rewards, but as we will see we can learn them.

Cartpole and DQN#

Get the environment and extract the number of actions.

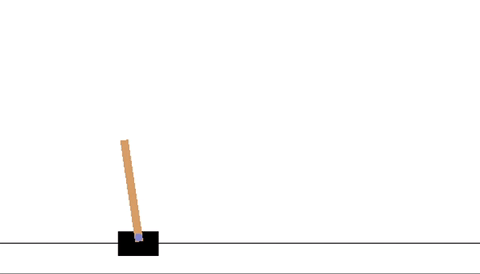

We will try to balance a stick - CartPole

To meet provide this challenge we are going to utilize the OpenAI gym, a collection of reinforcement learning environments.

Observations — The agent needs to know where pole currently is, and the angle at which it is balancing.
Delayed reward — Keeping the pole in the air as long as possible means moving in ways that will be advantageous for both the present and the future.

env = gym.make('CartPole-v0')
nb_actions = env.action_space.n
print('Number of actions', nb_actions)

Number of actions 2

Let’s build a simple NN model.

model = Sequential()
model.add(Flatten(input_shape=(1, 4)))
model.add(Dense(16, activation='relu'))
model.add(Dense(16, activation='relu'))
model.add(Dense(16, activation='relu'))
model.add(Dense(nb_actions))
model.summary()

Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
flatten (Flatten)            (None, 4)                 0
_________________________________________________________________
dense (Dense)                (None, 16)                80
_________________________________________________________________
dense_1 (Dense)              (None, 16)                272
_________________________________________________________________
dense_2 (Dense)              (None, 16)                272
_________________________________________________________________
dense_3 (Dense)              (None, 2)                 34
=================================================================
Total params: 658
Trainable params: 658
Non-trainable params: 0
_________________________________________________________________

Finally, we configure and compile our agent. We will use Epsilon Greedy:

All actions initially are tried with non-zero probability
With probability $1-\epsilon$ choose the greedy action
With probability $\epsilon$ choose an action ar random

and we will estimate target Q-Value using reward and the future discounted value estimate

$$Q_{target}(s,a) = r + \gamma \cdot \max_{a’} Q_\theta (s’, a’).$$

policy = EpsGreedyQPolicy()
memory = SequentialMemory(limit=50000, window_length=1)
dqn = DQNAgent(model=model, nb_actions=nb_actions,
               memory=memory, nb_steps_warmup=10,
               target_model_update=1e-2, policy=policy)
dqn.compile(Adam(lr=1e-3), metrics=['mae'])

Let’s see how it looks like before training. Note, that pole does not have to fall fully for gym to note it as a failed play.

dqn.test(env, nb_episodes=5, visualize=True)

Testing for 5 episodes ...
WARNING:tensorflow:From /Users/trokas/.local/share/virtualenvs/current-rcFo7dEP/lib/python3.7/site-packages/tensorflow/python/keras/engine/training_v1.py:2070: Model.state_updates (from tensorflow.python.keras.engine.training) is deprecated and will be removed in a future version.
Instructions for updating:
This property should not be used in TensorFlow 2.0, as updates are applied automatically.
Episode 1: reward: 9.000, steps: 9
Episode 2: reward: 10.000, steps: 10
Episode 3: reward: 8.000, steps: 8
Episode 4: reward: 9.000, steps: 9
Episode 5: reward: 9.000, steps: 9

<tensorflow.python.keras.callbacks.History at 0x14bf72d90>

from pyglet.gl import *

Okay, now it’s time to learn something! You can visualize the training by setting visualize=True, but this slows down training quite a lot.

dqn.fit(env, nb_steps=5000, visualize=False, verbose=2)

Training for 5000 steps ...

/Users/trokas/.local/share/virtualenvs/current-rcFo7dEP/lib/python3.7/site-packages/rl/memory.py:40: UserWarning: Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!
  warnings.warn('Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!')

   12/5000: episode: 1, duration: 0.519s, episode steps:  12, steps per second:  23, episode reward: 12.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.917 [0.000, 1.000],  loss: 0.470474, mae: 0.588689, mean_q: -0.165078
   22/5000: episode: 2, duration: 0.061s, episode steps:  10, steps per second: 164, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.430313, mae: 0.540784, mean_q: -0.092450
   31/5000: episode: 3, duration: 0.070s, episode steps:   9, steps per second: 129, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.335967, mae: 0.472474, mean_q: 0.008541

/Users/trokas/.local/share/virtualenvs/current-rcFo7dEP/lib/python3.7/site-packages/rl/memory.py:40: UserWarning: Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!
  warnings.warn('Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!')
/Users/trokas/.local/share/virtualenvs/current-rcFo7dEP/lib/python3.7/site-packages/rl/memory.py:40: UserWarning: Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!
  warnings.warn('Not enough entries to sample without replacement. Consider increasing your warm-up phase to avoid oversampling!')

   41/5000: episode: 4, duration: 0.081s, episode steps:  10, steps per second: 124, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.275959, mae: 0.449669, mean_q: 0.118187
   51/5000: episode: 5, duration: 0.092s, episode steps:  10, steps per second: 108, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.222271, mae: 0.432547, mean_q: 0.234795
   59/5000: episode: 6, duration: 0.051s, episode steps:   8, steps per second: 156, episode reward:  8.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.174522, mae: 0.418035, mean_q: 0.355626
   69/5000: episode: 7, duration: 0.060s, episode steps:  10, steps per second: 167, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.141265, mae: 0.404698, mean_q: 0.483447
   79/5000: episode: 8, duration: 0.071s, episode steps:  10, steps per second: 141, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.109955, mae: 0.393378, mean_q: 0.658335
   91/5000: episode: 9, duration: 0.079s, episode steps:  12, steps per second: 152, episode reward: 12.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.917 [0.000, 1.000],  loss: 0.091450, mae: 0.396206, mean_q: 0.877767
  100/5000: episode: 10, duration: 0.063s, episode steps:   9, steps per second: 142, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.071080, mae: 0.367935, mean_q: 1.070451
  110/5000: episode: 11, duration: 0.080s, episode steps:  10, steps per second: 125, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.040656, mae: 0.277581, mean_q: 1.128758
  122/5000: episode: 12, duration: 0.068s, episode steps:  12, steps per second: 175, episode reward: 12.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.917 [0.000, 1.000],  loss: 0.039916, mae: 0.235055, mean_q: 1.220565
  133/5000: episode: 13, duration: 0.064s, episode steps:  11, steps per second: 173, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.037617, mae: 0.185672, mean_q: 1.301775
  142/5000: episode: 14, duration: 0.064s, episode steps:   9, steps per second: 140, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.029914, mae: 0.136788, mean_q: 1.329070
  153/5000: episode: 15, duration: 0.074s, episode steps:  11, steps per second: 149, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.020719, mae: 0.097963, mean_q: 1.405725
  162/5000: episode: 16, duration: 0.052s, episode steps:   9, steps per second: 172, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.028612, mae: 0.103295, mean_q: 1.469801
  172/5000: episode: 17, duration: 0.073s, episode steps:  10, steps per second: 137, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.049274, mae: 0.166730, mean_q: 1.473215
  180/5000: episode: 18, duration: 0.047s, episode steps:   8, steps per second: 171, episode reward:  8.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.050855, mae: 0.227547, mean_q: 1.582873
  191/5000: episode: 19, duration: 0.071s, episode steps:  11, steps per second: 155, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.909 [0.000, 1.000],  loss: 0.036931, mae: 0.293956, mean_q: 1.573139
  201/5000: episode: 20, duration: 0.057s, episode steps:  10, steps per second: 176, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.037119, mae: 0.372745, mean_q: 1.674690
  214/5000: episode: 21, duration: 0.086s, episode steps:  13, steps per second: 150, episode reward: 13.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.923 [0.000, 1.000],  loss: 0.031381, mae: 0.466767, mean_q: 1.717232
  224/5000: episode: 22, duration: 0.062s, episode steps:  10, steps per second: 162, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.026674, mae: 0.542755, mean_q: 1.758591
  235/5000: episode: 23, duration: 0.067s, episode steps:  11, steps per second: 164, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.027041, mae: 0.612402, mean_q: 1.860339
  246/5000: episode: 24, duration: 0.063s, episode steps:  11, steps per second: 174, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.909 [0.000, 1.000],  loss: 0.027587, mae: 0.699082, mean_q: 1.904512
  256/5000: episode: 25, duration: 0.072s, episode steps:  10, steps per second: 138, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.029212, mae: 0.805567, mean_q: 1.940700
  266/5000: episode: 26, duration: 0.057s, episode steps:  10, steps per second: 174, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.025534, mae: 0.899284, mean_q: 2.023443
  276/5000: episode: 27, duration: 0.056s, episode steps:  10, steps per second: 178, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.022218, mae: 0.966137, mean_q: 2.042806
  286/5000: episode: 28, duration: 0.057s, episode steps:  10, steps per second: 177, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.800 [0.000, 1.000],  loss: 0.021570, mae: 1.044661, mean_q: 2.155052
  295/5000: episode: 29, duration: 0.061s, episode steps:   9, steps per second: 147, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.020520, mae: 1.094059, mean_q: 2.199599
  308/5000: episode: 30, duration: 0.077s, episode steps:  13, steps per second: 169, episode reward: 13.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.692 [0.000, 1.000],  loss: 0.022571, mae: 1.133968, mean_q: 2.243752
  317/5000: episode: 31, duration: 0.055s, episode steps:   9, steps per second: 164, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.020044, mae: 1.149221, mean_q: 2.304041
  327/5000: episode: 32, duration: 0.066s, episode steps:  10, steps per second: 151, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.021239, mae: 1.169513, mean_q: 2.339834
  336/5000: episode: 33, duration: 0.094s, episode steps:   9, steps per second:  96, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.023094, mae: 1.188593, mean_q: 2.390890
  346/5000: episode: 34, duration: 0.065s, episode steps:  10, steps per second: 154, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.022992, mae: 1.202299, mean_q: 2.471655
  357/5000: episode: 35, duration: 0.068s, episode steps:  11, steps per second: 162, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.818 [0.000, 1.000],  loss: 0.019110, mae: 1.238184, mean_q: 2.502657
  365/5000: episode: 36, duration: 0.051s, episode steps:   8, steps per second: 157, episode reward:  8.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.019257, mae: 1.298393, mean_q: 2.608709
  374/5000: episode: 37, duration: 0.068s, episode steps:   9, steps per second: 132, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.022095, mae: 1.292124, mean_q: 2.564080
  382/5000: episode: 38, duration: 0.049s, episode steps:   8, steps per second: 162, episode reward:  8.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.019151, mae: 1.287852, mean_q: 2.625877
  390/5000: episode: 39, duration: 0.050s, episode steps:   8, steps per second: 162, episode reward:  8.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.017112, mae: 1.312830, mean_q: 2.695813
  400/5000: episode: 40, duration: 0.056s, episode steps:  10, steps per second: 178, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.023879, mae: 1.328734, mean_q: 2.682201

  411/5000: episode: 41, duration: 0.082s, episode steps:  11, steps per second: 135, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.020045, mae: 1.381140, mean_q: 2.797448
  420/5000: episode: 42, duration: 0.053s, episode steps:   9, steps per second: 170, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 1.000 [1.000, 1.000],  loss: 0.019161, mae: 1.413261, mean_q: 2.860299
  429/5000: episode: 43, duration: 0.051s, episode steps:   9, steps per second: 178, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.000 [0.000, 0.000],  loss: 0.018604, mae: 1.456374, mean_q: 2.892892
  439/5000: episode: 44, duration: 0.056s, episode steps:  10, steps per second: 178, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.000 [0.000, 0.000],  loss: 0.020485, mae: 1.566899, mean_q: 3.080875
  450/5000: episode: 45, duration: 0.069s, episode steps:  11, steps per second: 160, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.091 [0.000, 1.000],  loss: 0.054166, mae: 1.594057, mean_q: 3.129970
  469/5000: episode: 46, duration: 0.109s, episode steps:  19, steps per second: 175, episode reward: 19.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.737 [0.000, 1.000],  loss: 0.085353, mae: 1.639644, mean_q: 3.223077
  479/5000: episode: 47, duration: 0.074s, episode steps:  10, steps per second: 135, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.074795, mae: 1.633099, mean_q: 3.251204
  489/5000: episode: 48, duration: 0.080s, episode steps:  10, steps per second: 125, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.800 [0.000, 1.000],  loss: 0.064578, mae: 1.737262, mean_q: 3.414563
  510/5000: episode: 49, duration: 0.132s, episode steps:  21, steps per second: 159, episode reward: 21.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.810 [0.000, 1.000],  loss: 0.098541, mae: 1.766980, mean_q: 3.486397
  519/5000: episode: 50, duration: 0.064s, episode steps:   9, steps per second: 140, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.023946, mae: 1.777427, mean_q: 3.657187
  528/5000: episode: 51, duration: 0.069s, episode steps:   9, steps per second: 130, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.225973, mae: 1.852565, mean_q: 3.621992
  538/5000: episode: 52, duration: 0.058s, episode steps:  10, steps per second: 173, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.800 [0.000, 1.000],  loss: 0.073033, mae: 1.788411, mean_q: 3.667327
  547/5000: episode: 53, duration: 0.058s, episode steps:   9, steps per second: 156, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.778 [0.000, 1.000],  loss: 0.143109, mae: 1.906599, mean_q: 3.800969
  557/5000: episode: 54, duration: 0.059s, episode steps:  10, steps per second: 171, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.800 [0.000, 1.000],  loss: 0.116130, mae: 1.945354, mean_q: 3.823783
  567/5000: episode: 55, duration: 0.066s, episode steps:  10, steps per second: 152, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.800 [0.000, 1.000],  loss: 0.060006, mae: 1.932278, mean_q: 3.874469
  581/5000: episode: 56, duration: 0.078s, episode steps:  14, steps per second: 180, episode reward: 14.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.286 [0.000, 1.000],  loss: 0.055350, mae: 2.012805, mean_q: 3.915246
  603/5000: episode: 57, duration: 0.124s, episode steps:  22, steps per second: 177, episode reward: 22.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.773 [0.000, 1.000],  loss: 0.169755, mae: 2.083003, mean_q: 4.036840
  615/5000: episode: 58, duration: 0.078s, episode steps:  12, steps per second: 154, episode reward: 12.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.917 [0.000, 1.000],  loss: 0.114085, mae: 2.029571, mean_q: 4.084495
  624/5000: episode: 59, duration: 0.053s, episode steps:   9, steps per second: 170, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.778 [0.000, 1.000],  loss: 0.036830, mae: 2.182385, mean_q: 4.291920
  633/5000: episode: 60, duration: 0.053s, episode steps:   9, steps per second: 171, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.222 [0.000, 1.000],  loss: 0.079529, mae: 2.263263, mean_q: 4.401288
  645/5000: episode: 61, duration: 0.076s, episode steps:  12, steps per second: 157, episode reward: 12.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.417 [0.000, 1.000],  loss: 0.119164, mae: 2.326660, mean_q: 4.528762
  659/5000: episode: 62, duration: 0.077s, episode steps:  14, steps per second: 183, episode reward: 14.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.786 [0.000, 1.000],  loss: 0.157494, mae: 2.281876, mean_q: 4.494839
  672/5000: episode: 63, duration: 0.072s, episode steps:  13, steps per second: 180, episode reward: 13.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.846 [0.000, 1.000],  loss: 0.169453, mae: 2.292716, mean_q: 4.462337
  681/5000: episode: 64, duration: 0.053s, episode steps:   9, steps per second: 170, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.151908, mae: 2.424157, mean_q: 4.723896
  695/5000: episode: 65, duration: 0.089s, episode steps:  14, steps per second: 158, episode reward: 14.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.571 [0.000, 1.000],  loss: 0.304582, mae: 2.426633, mean_q: 4.590652
  705/5000: episode: 66, duration: 0.057s, episode steps:  10, steps per second: 174, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.900 [0.000, 1.000],  loss: 0.436756, mae: 2.424292, mean_q: 4.715697
  716/5000: episode: 67, duration: 0.066s, episode steps:  11, steps per second: 167, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.727 [0.000, 1.000],  loss: 0.098687, mae: 2.408761, mean_q: 4.801852
  734/5000: episode: 68, duration: 0.104s, episode steps:  18, steps per second: 173, episode reward: 18.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.333 [0.000, 1.000],  loss: 0.155669, mae: 2.528998, mean_q: 4.861622
  744/5000: episode: 69, duration: 0.057s, episode steps:  10, steps per second: 176, episode reward: 10.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.325872, mae: 2.618933, mean_q: 4.982594
  753/5000: episode: 70, duration: 0.063s, episode steps:   9, steps per second: 144, episode reward:  9.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.889 [0.000, 1.000],  loss: 0.138682, mae: 2.574592, mean_q: 5.071961
  824/5000: episode: 71, duration: 0.405s, episode steps:  71, steps per second: 175, episode reward: 71.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.451 [0.000, 1.000],  loss: 0.209768, mae: 2.749775, mean_q: 5.309204
  843/5000: episode: 72, duration: 0.135s, episode steps:  19, steps per second: 140, episode reward: 19.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.526 [0.000, 1.000],  loss: 0.499627, mae: 2.907677, mean_q: 5.520334
  866/5000: episode: 73, duration: 0.138s, episode steps:  23, steps per second: 167, episode reward: 23.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.435 [0.000, 1.000],  loss: 0.352647, mae: 3.020049, mean_q: 5.775416
  904/5000: episode: 74, duration: 0.212s, episode steps:  38, steps per second: 180, episode reward: 38.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.480730, mae: 3.109391, mean_q: 5.915252
  920/5000: episode: 75, duration: 0.100s, episode steps:  16, steps per second: 160, episode reward: 16.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.531046, mae: 3.173185, mean_q: 5.956018
  942/5000: episode: 76, duration: 0.148s, episode steps:  22, steps per second: 149, episode reward: 22.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.377572, mae: 3.220942, mean_q: 6.163136

  978/5000: episode: 77, duration: 0.209s, episode steps:  36, steps per second: 172, episode reward: 36.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.556 [0.000, 1.000],  loss: 0.431317, mae: 3.425709, mean_q: 6.535269
 1027/5000: episode: 78, duration: 0.265s, episode steps:  49, steps per second: 185, episode reward: 49.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.612 [0.000, 1.000],  loss: 0.423559, mae: 3.513860, mean_q: 6.769080
 1059/5000: episode: 79, duration: 0.181s, episode steps:  32, steps per second: 177, episode reward: 32.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.562 [0.000, 1.000],  loss: 0.658946, mae: 3.776556, mean_q: 7.246701
 1070/5000: episode: 80, duration: 0.083s, episode steps:  11, steps per second: 132, episode reward: 11.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.455 [0.000, 1.000],  loss: 0.327387, mae: 3.787353, mean_q: 7.344775
 1088/5000: episode: 81, duration: 0.115s, episode steps:  18, steps per second: 156, episode reward: 18.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.316476, mae: 3.937152, mean_q: 7.609412
 1104/5000: episode: 82, duration: 0.106s, episode steps:  16, steps per second: 151, episode reward: 16.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.438 [0.000, 1.000],  loss: 0.420196, mae: 3.957492, mean_q: 7.688070
 1132/5000: episode: 83, duration: 0.183s, episode steps:  28, steps per second: 153, episode reward: 28.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.571 [0.000, 1.000],  loss: 0.426044, mae: 4.046975, mean_q: 7.878060
 1150/5000: episode: 84, duration: 0.113s, episode steps:  18, steps per second: 159, episode reward: 18.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.827794, mae: 4.221570, mean_q: 8.054273
 1200/5000: episode: 85, duration: 0.284s, episode steps:  50, steps per second: 176, episode reward: 50.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.540 [0.000, 1.000],  loss: 0.714621, mae: 4.314801, mean_q: 8.287112
 1247/5000: episode: 86, duration: 0.258s, episode steps:  47, steps per second: 182, episode reward: 47.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.553 [0.000, 1.000],  loss: 0.773649, mae: 4.538174, mean_q: 8.704104
 1261/5000: episode: 87, duration: 0.076s, episode steps:  14, steps per second: 184, episode reward: 14.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.500 [0.000, 1.000],  loss: 0.502036, mae: 4.533714, mean_q: 8.829727
 1308/5000: episode: 88, duration: 0.261s, episode steps:  47, steps per second: 180, episode reward: 47.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.553 [0.000, 1.000],  loss: 0.570172, mae: 4.647412, mean_q: 9.040591
 1370/5000: episode: 89, duration: 0.379s, episode steps:  62, steps per second: 164, episode reward: 62.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.548 [0.000, 1.000],  loss: 0.989270, mae: 4.946057, mean_q: 9.515224
 1399/5000: episode: 90, duration: 0.159s, episode steps:  29, steps per second: 183, episode reward: 29.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.552 [0.000, 1.000],  loss: 1.176853, mae: 5.198234, mean_q: 9.959958
 1448/5000: episode: 91, duration: 0.309s, episode steps:  49, steps per second: 158, episode reward: 49.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.551 [0.000, 1.000],  loss: 0.952976, mae: 5.287143, mean_q: 10.154800
 1498/5000: episode: 92, duration: 0.405s, episode steps:  50, steps per second: 123, episode reward: 50.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.480 [0.000, 1.000],  loss: 0.870449, mae: 5.336462, mean_q: 10.413436
 1664/5000: episode: 93, duration: 1.245s, episode steps: 166, steps per second: 133, episode reward: 166.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.488 [0.000, 1.000],  loss: 0.958424, mae: 5.705412, mean_q: 11.109818
 1826/5000: episode: 94, duration: 0.922s, episode steps: 162, steps per second: 176, episode reward: 162.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.512 [0.000, 1.000],  loss: 0.992422, mae: 6.281146, mean_q: 12.353326
 1924/5000: episode: 95, duration: 0.558s, episode steps:  98, steps per second: 176, episode reward: 98.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.541 [0.000, 1.000],  loss: 0.852377, mae: 6.789612, mean_q: 13.442488
 2046/5000: episode: 96, duration: 0.770s, episode steps: 122, steps per second: 159, episode reward: 122.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.525 [0.000, 1.000],  loss: 0.885076, mae: 7.222069, mean_q: 14.393581
 2153/5000: episode: 97, duration: 0.687s, episode steps: 107, steps per second: 156, episode reward: 107.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.542 [0.000, 1.000],  loss: 1.367149, mae: 7.668120, mean_q: 15.262555
 2279/5000: episode: 98, duration: 0.713s, episode steps: 126, steps per second: 177, episode reward: 126.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.524 [0.000, 1.000],  loss: 1.260647, mae: 8.097031, mean_q: 16.164738
 2396/5000: episode: 99, duration: 0.686s, episode steps: 117, steps per second: 171, episode reward: 117.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.530 [0.000, 1.000],  loss: 1.178987, mae: 8.592623, mean_q: 17.307045
 2506/5000: episode: 100, duration: 0.686s, episode steps: 110, steps per second: 160, episode reward: 110.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.536 [0.000, 1.000],  loss: 1.449976, mae: 9.069571, mean_q: 18.257244
 2638/5000: episode: 101, duration: 0.706s, episode steps: 132, steps per second: 187, episode reward: 132.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.530 [0.000, 1.000],  loss: 1.439077, mae: 9.681490, mean_q: 19.509804
 2838/5000: episode: 102, duration: 1.122s, episode steps: 200, steps per second: 178, episode reward: 200.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.510 [0.000, 1.000],  loss: 1.288759, mae: 10.281319, mean_q: 20.763508
 2966/5000: episode: 103, duration: 0.746s, episode steps: 128, steps per second: 172, episode reward: 128.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.539 [0.000, 1.000],  loss: 1.021335, mae: 10.965878, mean_q: 22.229786
 3085/5000: episode: 104, duration: 0.614s, episode steps: 119, steps per second: 194, episode reward: 119.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.529 [0.000, 1.000],  loss: 1.724188, mae: 11.502838, mean_q: 23.207365
 3240/5000: episode: 105, duration: 0.935s, episode steps: 155, steps per second: 166, episode reward: 155.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.535 [0.000, 1.000],  loss: 1.152186, mae: 11.955059, mean_q: 24.223032
 3351/5000: episode: 106, duration: 0.765s, episode steps: 111, steps per second: 145, episode reward: 111.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.550 [0.000, 1.000],  loss: 1.526762, mae: 12.509210, mean_q: 25.333750
 3503/5000: episode: 107, duration: 0.819s, episode steps: 152, steps per second: 186, episode reward: 152.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.533 [0.000, 1.000],  loss: 1.491376, mae: 12.957224, mean_q: 26.248934
 3648/5000: episode: 108, duration: 0.802s, episode steps: 145, steps per second: 181, episode reward: 145.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.538 [0.000, 1.000],  loss: 1.509259, mae: 13.522982, mean_q: 27.380350
 3796/5000: episode: 109, duration: 0.749s, episode steps: 148, steps per second: 198, episode reward: 148.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.541 [0.000, 1.000],  loss: 1.833841, mae: 14.026245, mean_q: 28.358576
 3933/5000: episode: 110, duration: 0.747s, episode steps: 137, steps per second: 183, episode reward: 137.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.547 [0.000, 1.000],  loss: 1.839880, mae: 14.553422, mean_q: 29.404638
 4089/5000: episode: 111, duration: 1.021s, episode steps: 156, steps per second: 153, episode reward: 156.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.545 [0.000, 1.000],  loss: 2.253473, mae: 14.786485, mean_q: 29.928009
 4221/5000: episode: 112, duration: 0.693s, episode steps: 132, steps per second: 191, episode reward: 132.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.553 [0.000, 1.000],  loss: 1.984523, mae: 15.235884, mean_q: 30.869091

 4354/5000: episode: 113, duration: 0.721s, episode steps: 133, steps per second: 184, episode reward: 133.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.549 [0.000, 1.000],  loss: 2.111134, mae: 15.772705, mean_q: 32.011673
 4498/5000: episode: 114, duration: 0.878s, episode steps: 144, steps per second: 164, episode reward: 144.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.542 [0.000, 1.000],  loss: 2.185027, mae: 16.169411, mean_q: 32.845894
 4643/5000: episode: 115, duration: 0.847s, episode steps: 145, steps per second: 171, episode reward: 145.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.545 [0.000, 1.000],  loss: 2.088379, mae: 16.734930, mean_q: 33.954765
 4775/5000: episode: 116, duration: 0.753s, episode steps: 132, steps per second: 175, episode reward: 132.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.545 [0.000, 1.000],  loss: 2.871243, mae: 17.063446, mean_q: 34.656677
 4941/5000: episode: 117, duration: 0.941s, episode steps: 166, steps per second: 176, episode reward: 166.000, mean reward:  1.000 [ 1.000,  1.000], mean action: 0.536 [0.000, 1.000],  loss: 2.217524, mae: 17.468794, mean_q: 35.423603
done, took 30.338 seconds

<tensorflow.python.keras.callbacks.History at 0x15108fb10>

Let’s test our reinforcement learning model.

dqn.test(env, nb_episodes=5, visualize=True)

Testing for 5 episodes ...
Episode 1: reward: 157.000, steps: 157
Episode 2: reward: 140.000, steps: 140
Episode 3: reward: 134.000, steps: 134
Episode 4: reward: 200.000, steps: 200
Episode 5: reward: 143.000, steps: 143

<tensorflow.python.keras.callbacks.History at 0x15269e050>

This is nearly a perfect play, since CartPole exits if 200 steps are reached. You can experiment with version which limit is 500 by changing env to CartPole-v1.

MuZero#

Recent and impressive advancement in AI is MuZero. We will just run the implementation listed in - https://github.com/werner-duvaud/muzero-general. General idea involves first constructing the embedding and only then training the agent. According to George Hotz this algorithm is the one of the most important event in the history AI that people will cite for ages.

# I just downloaded it from git and installed deps
import os
os.chdir('/Users/trokas/muzero-general/')

from muzero import MuZero

muzero = MuZero("cartpole")  # it uses v1 by default
muzero.train()

2020-12-11 14:57:51,604	ERROR worker.py:660 -- Calling ray.init() again after it has already been called.

Training...
Run tensorboard --logdir ./results and go to http://localhost:6006/ to see in real time the training performance.

(pid=33338) You are not training on GPU.
(pid=33338)
Last test reward: 386.00. Training step: 10000/10000. Played games: 68. Loss: 5.89
Shutting down workers...


Persisting replay buffer games to disk...

Only with 68 it achieved decent result!

If you want interesting challenge you could try to add additional experiment and insted of using cartpole position as input pass image of the cartpole instead. That’s where the power of MuZero can be seen, it should be able to construct internal representation suitable for learning on it’s own!
